SYBA SD-PEX30009 Low Profile PCI-Express 1394B Firewire Controller Card

PCI Express to 1394 Card
1394A/1394B
800/400/200/100 Mbps Data Transfer Rate

Model

Brand

SYBA

Model

SD-PEX30009

Spec

Type

PCI Express to 1394 Card

External 1394 Ports

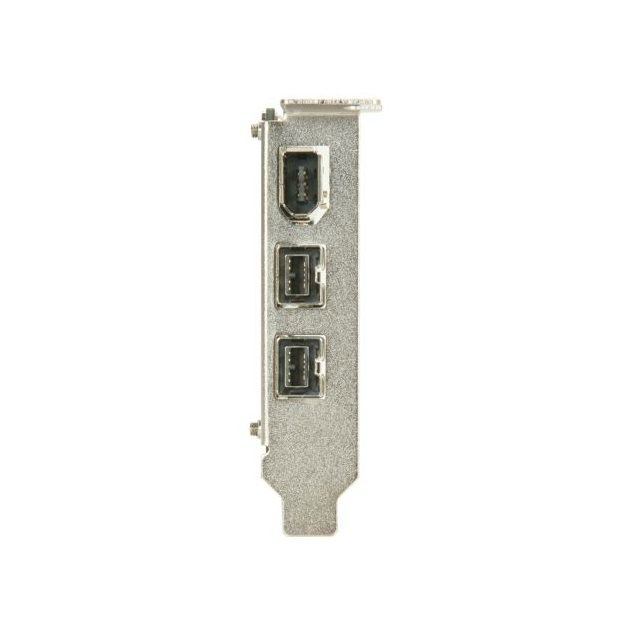

2 x 1394B Ports + 1x 1394A Port

Internal 1394 Ports

1x 1394A Firewire internal header (Shared Port)

Standard

1394A/1394B

Data Transfer Rate

800/400/200/100 Mbps

Operating Systems Supported

Windows 98SE/ME/2000/Server 2003/XP-32ibt/Xp-64bit, Vista 32-bit/Vista-64bit, Mac OS

Physical Spec

Dimensions
6.9 x 5.6 x 1.5 Inch

Weight

4.8 Oz.

Features

Features

1-Lane (x1) PCI-Express with transfer rate 2.5Gbps Full Duplex channel

Compliant with PCI-Express Revision 1.0a

Support provisions of IEEE Standard P1394b-2002
Compliant with 1394 Open Host Controller Interface (OHCI) specification Revision 1.1 and 1.2 draft
Fully Plug & Play and Hot Plug supported
Fully backward compatible to 1394a specification
Compliant with IEEE 1394a-2000 and 1394-1995 standard for a High-Performance Serial Bus
Fully interoperable with Firewire, iLink and SB1394 implementation of IEEE 1394 standard
Equipped with Bilingual IEEE Standard 1394b-2002 ports for 800Mbps data transferring
Comes with a 1x 1394A Firewire internal header (Shared Port)

Packaging

Package Contents

PCI-Express IEEE 1394B firewire controller card
User manual
Driver CD
Standard PCI-Express bracket

Manufacturer Warranty

Parts

1 year limited
